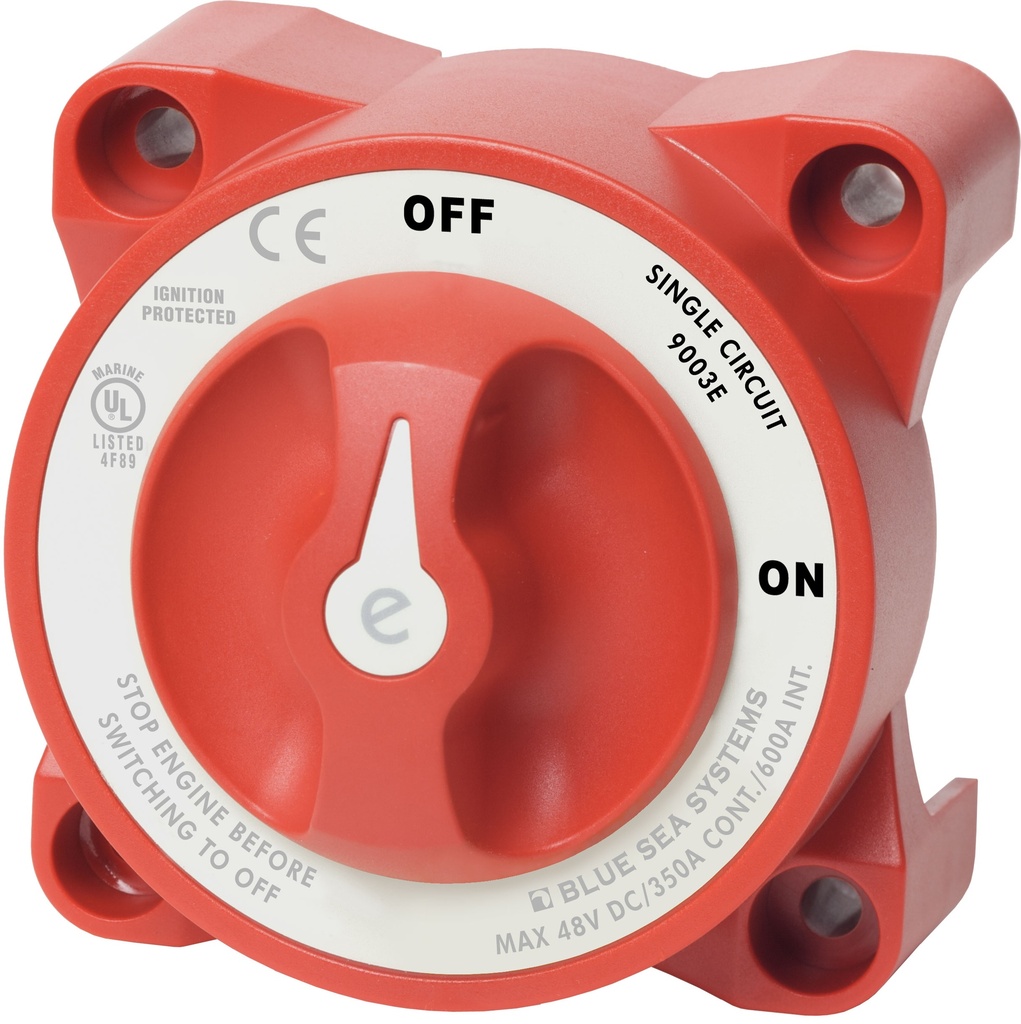

Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
| Specifications | |
|---|---|
Switch Type  | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.95lb (0.43 kg) |
| Weight | 1.30lb (0.59 kg) |
